High Precision Deep Groove Ball Bearing 61800

Products Details

Size

61800

Bore Diameter

10mm

Outside Diameter

19mm

Bearing Height

5mm

Net Weight/pcs

0.0053kg

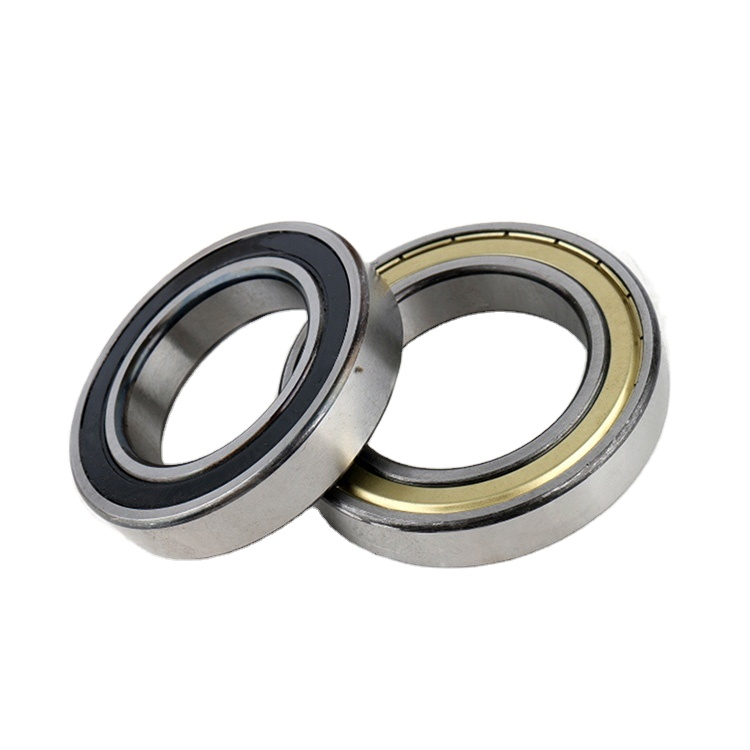

Deep groove ball bearings is one of the most widely used rolling bearings. It is characterized by small friction resistance and high speed. It can be used to bear radial load or combined load of radial and axial at the same time. It can also be used to bear axial load. Suffixes Meanings: OPEN   : no seals on both sides , no frictional resistance , easy relubrication . RS,2RS : rubber seal on one side or both sides , for high sealing effect against dirt and moisture . ZZ,2Z   : contactless metal sealing shields on one side or both side , good sealing action against leakage of grease ,long maintenance-free period (lifetime lubrication) .Shandong Nice Bearing Manufacture Co. Ltd, established in 1995, is a supplier of bearing, roller bearing ,ball bearing,pillow block bearing, rod ends bearing ,needle roller bearing,screw bearings and slider bearings and slewing support bearings and so on.We have exported more than 100countries like USA, Mexico,Canada, Spain, Russia,Singapore,Thailand, India etc.We are committed to creating a one-stop shopping platform for customers to save time, improve efficiency with the best price and quality to win the trust of customers. Win-win cooperation is our company's business philosophy.
Bearing Designations Boundary Dimensions(mm) Basic Load Rating(KN) Limiting Speed(r/min) Weight(kg)
New Standard Old Standard  d D B Cr Cor Grease Oil
61800 1000800 10 19 5 1.80 0.93 28000 36000 0.005
61801 1000801 12 21 5 1.90 1.00 24000 32000 0.005
61802 1000802 15 24 5 2.10 1.30 22000 30000 0.005
61803 1000803 17 26 5 2.20 1.50 20000 28000 0.007
61804 1000804 20 32 7 3.50 2.20 18000 24000 0.015
61805 1000805 25 37 7 4.30 2.90 16000 20000 0.015
61806 1000806 30 42 7 4.70 3.60 13000 17000 0.019
61807 1000807 35 47 7 4.90 4.00 11000 15000 0.023
61808 1000808 40 52 7 5.10 4.40 10000 13000 0.026
61809 1000809 45 58 7 6.40 5.60 9000 12000 0.030
61810 1000810 50 65 7 6.60 6.10 85000 10000 0.043
61811 1000811 55 72 9 9.10 8.40 8000 9500 0.070
61812 1000812 60 78 10 9.10 8.70 7000 8500 0.093
61813 1000813 65 85 10 11.9 11.5 6700 8000 0.130
61814 1000814 70 90 10 12. 11.9 6300 7500 0.138
61815 1000815 75 95 10 12.5 12.8 6000 7000 0.147
61816 1000816 80 100 10 12.7 13.3 5600 6700 0.155
61817 1000817 85 110 13 19.2 19.8 5000 6300 0.245
61818 1000818 90 115 13 19.5 20.5 4800 6000 0.258
61819 1000819 95 120 13 19.8 21.3 4500 5600 0.270
61820 1000820 100 125 13 20.1 22.0 4300 5300 0.280
Application of Deep groove ball bearing : 1.gearbox 2. instrument 3. electric motor 4. household appliances 5. internal combustion engine 6. traffic vehicles  7.agricultural machinery 8. construction machinery 9.engineering machinery 10. roller type roller skates 11. Yo Yo Yo, etc
