Directly From The Factory: 21319 Spherical Roller Bearing

We manufactues the different range of bearings for the varieties of the application, following are the range of product we produce: Series 203: single row roller,light Series 239: spherical roller, very light Series 230: spherical roller, light Series 240: spherical roller, light, wide Series 231: spherical roller, medium Series 241: spherical roller, medium, wide Series 222: spherical roller, heavy Series 232: spherical roller, heavy, wide Series 213: spherical roller, extra heavy Series 223: spherical roller, extra heavy, wide

Double row bearing 21318 spherical roller bearings

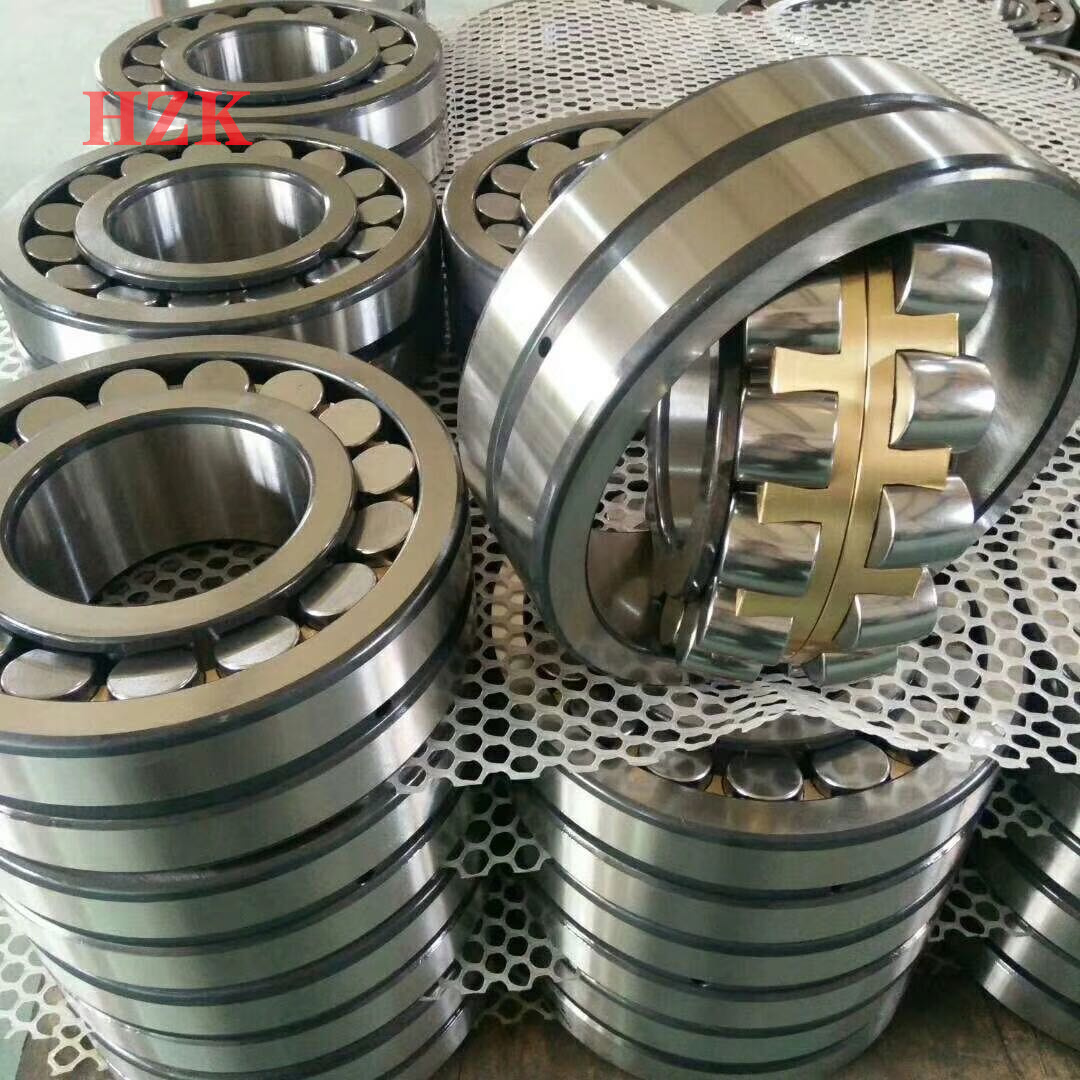

21318 Spherical Roller Bearings

1.21318 bearing Abstract: Spherical roller bearings use rollers that are thicker in the middle and thinner at the ends; the race is shaped to match. Spherical roller bearings can thus adjust to support misaligned loads. However, spherical rollers are difficult to produce and thus expensive, and the bearings have higher friction than a comparable ball bearing since different parts of the spherical rollers run at different speeds on the rounded race and thus there are opposing forces along the bearing/race contact.

2. 21318 bearing product details: Structure: Spherical Type: Roller Brand Name: HZK Bore Size: 90 mm Outside Diameter: 190 mm Model Number: 21318 Precision Rating: ABEC-1,ABEC-3 Seals Type: OPEN Number of Row: other Place of Origin: Shandong China (Mainland) Shield/Sealing: OPEN,Z,ZZ,2RS Material: chrome steel carbon steel Quality standard: ISO90001:2000 Cage: steel brass nylon Packing details: Industrial packing or as reque... Vibration: Z1V1,Z2V2,Z3V3

3.Common Options: E-- Extra Capacity style J-- Steel cage M-- Machined brass cage K-- 1:12 Tapered Bore C2-- tight internal clearance C0-- Normal Clearance C3-- Greater than normal Clearance T41A-- Shaker Screen Style

4.features: 1) Good quality, reasonable prices 2) Wide application and attractive appearance 3) Widely used in all kinds of machinery 4)The range of inner diameter size is below 2000mm

5.applications: Motorcycles, Electric Bicycles, Electric Motors (Scooters), Electric Tools, Fans, Sports Apparatus, Washing Machines, Dust Collectors, Ventilators, Textile, Machines, Running Machines (Treadmills), Household Appliances, Water Pumps, Agricultural Machines, Precision Machineries, etc.

spherical roller bearing catalogue:

Model	d	D	B
Model	mm	mm	mm
21304	20	52	15
21305	25	62	17
21306	30	72	19
21307	35	80	21
21308	40	90	23
21309	45	100	25
21310	50	110	27
21311	55	120	29
21312	60	130	31
21313	65	140	33
21314	70	150	35
21315	75	160	37
21316	80	170	39
21317	85	180	41
21318	90	190	43
21319	95	200	45
21320	100	215	47
21321	110	240	50

Our factory has 26 years bearing experience,excellent technology workers,strict boss,best after-sales service,to be your business successful. Welocme to chat with me for bearing 21309 CA CC MA MB E spherical roller bearing.Please drop your contact information,we will send you our best price for you.
