Rolamentos 20322 Single Spherical Roller Bearings 20322MB bearing rulman

20322 Spherical Roller Bearing, Bearing is made of Chrome Steel.
  • Item: 20322bearing
  • Type: Spherical roller Bearing
  • Size: 110mm x240mm x50mm
  • Quantity: One Bearing (cone+cup)

Products Details

We manufactues the different range of bearings for the varieties of the application, following are the range of product we produce: Series 203: single row roller,light Series 239: spherical roller, very light Series 230: spherical roller, light Series 240: spherical roller, light, wide Series 231: spherical roller, medium Series 241: spherical roller, medium, wide Series 222: spherical roller, heavy Series 232: spherical roller, heavy, wide Series 213: spherical roller, extra heavy Series 223: spherical roller, extra heavy, wide  Part of the bearing specification :
Bearing No. d1H D B
mm mm mm
20205-K-TVP-C3 + H205 20 52 15
20206-K-TVP-C3 + H206 25 62 16
20207-K-TVP-C3 + H207 30 72 17
20208-K-TVP-C3 + H208 35 80 18
20209-K-TVP-C3 + H209 40 85 19
20210-K-TVP-C3 + H210 45 90 20
20211-K-TVP-C3 + H211 50 100 21
20212-K-TVP-C3 + H212 55 110 22
20213-K-TVP-C3 + H213 60 120 23
20215-K-TVP-C3 + H215 65 130 25
20216-K-TVP-C3 + H216 70 140 26
20217-K-MB-C3 + H217 75 150 28
20218-K-MB-C3 + H218 80 160 30
20220-K-MB-C3 + H220 90 180 34
20222-K-MB-C3 + H222 100 200 38
20224-K-MB-C3 + H3024 110 215 40
20226-K-MB-C3 + H3026 115 230 40
20228-K-MB-C3 + H3028 125 250 42
20230-K-MB-C3 + H3030 135 270 45
20232-K-MB-C3 + H3032 140 290 48
20304-TVP 20 52 15
20305-TVP 25 62 17
20306-TVP 30 72 19
20307-TVP 35 80 21
20308-TVP 40 90 23
20309-TVP 45 100 25
20310-TVP 50 110 27
20311-TVP 55 120 29
20312-TVP 60 130 31
20313-MB 65 140 33
20314-MB 70 150 35
20315-MB 75 160 37
20316-MB 80 170 39
20317-MB 85 180 41
20318-MB 90 190 43
20319-MB 95 200 45
20320-MB 100 215 47
20322-MB 110 240 50
20324-MB 120 260 55
20328-MB 140 300 62
20330-MB 150 320 65
20311-K-TVP-C3 55 120 29
20312-K-TVP-C3 60 130 31
20313-K-MB-C3 65 140 33
20318-K-MB-C3 90 190 43
20320-K-MB-C3 100 215 47
20311-K-TVP-C3 + H311 50 120 29
20312-K-TVP-C3 + H312 55 130 31
20313-K-MB-C3 + H313 60 140 33
20318-K-MB-C3 + H318 80 190 43
20320-K-MB-C3 + H320 90 215 47

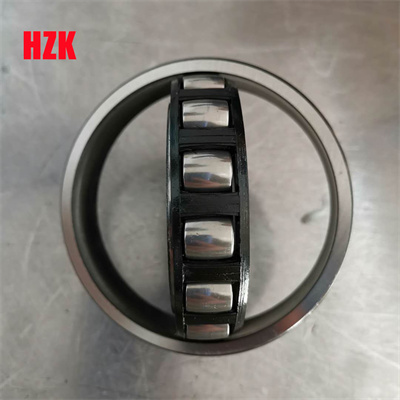

      Spherical roller bearing: Spherical Roller Bearing are designed to work in applications where severe misalignment exists whether from mounting or shaft deflection and with relatively heavy radial loads and some axial loads in either direction. They are also extremely resistant to shock loads and their self-aligning feature allows full capacity loading despite shaft deflection. They are very similar in purpose to Self-Aligning Double Row Ball Bearing, except the Spherical Roller Bearing are designed to be more robust by carry heavier loads but at lower maximum speeds . Spherical Roller Bearing are commonly used in agricultural machines such as combined harvesting machine, air-blower, paper-machine, textile machine,woodworking machinery, overhead crane moving wheel and driving shaft as well as a large number of non agricultural applications.   Picture show: 微信图片_202009041915302_副本     Specification:
Product 20322-MB Single Row Bearing 110x240x50 mm Barrel Roller Bearing 20322MB
Precision Rating ABEC1,ABEC3,ABEC5
Clearance C0,C2,C3,C4,C5 is available
Sealed Cap Rubber or Metal
Paypal Acceptable
OEM Accept
Vibration Level code V1,V2.V3
Material Gcr15
Seals Type ZZ/ZRS.RZ/RS. Open
Thickness 50MM
Bore Size 110MM
Outside Diameter 240MM
 Number Of Row double row
Regular export packing Plastic drum+White box+ carton
industrial packaging or as your requiremen.
MOQ 1 pcs
Delivery Time 1-3 days after receiving your payment
Payment Terms L/C,T/T,Western Union,MoneyGram,Paypal
Port of shippment by sea Shanghai,guangzhou,qingdao
Place of Origin Shandong, China
Samples Available
Our factory has 26 years bearing experience,excellent technology workers,strict boss,best after-sales service,to be your business successful. Welocme to chat with me for bearing 20322 CA CC MA MB E spherical roller bearing.Please drop your contact information,we will send you our best price for you.
